Description
- application : Water system, etc
- warranty : 1 Year
- place of origin : Hebei, China
- model number : Z45X
- power : Manual
- temperature of media : Low Temperature, Medium Temperature, Normal Temperature
- brand name : Hebei Tonggong
- structure : Gate
- media : Water, Oil, Gas, etc
- customized support : OEM, ODM, OBM

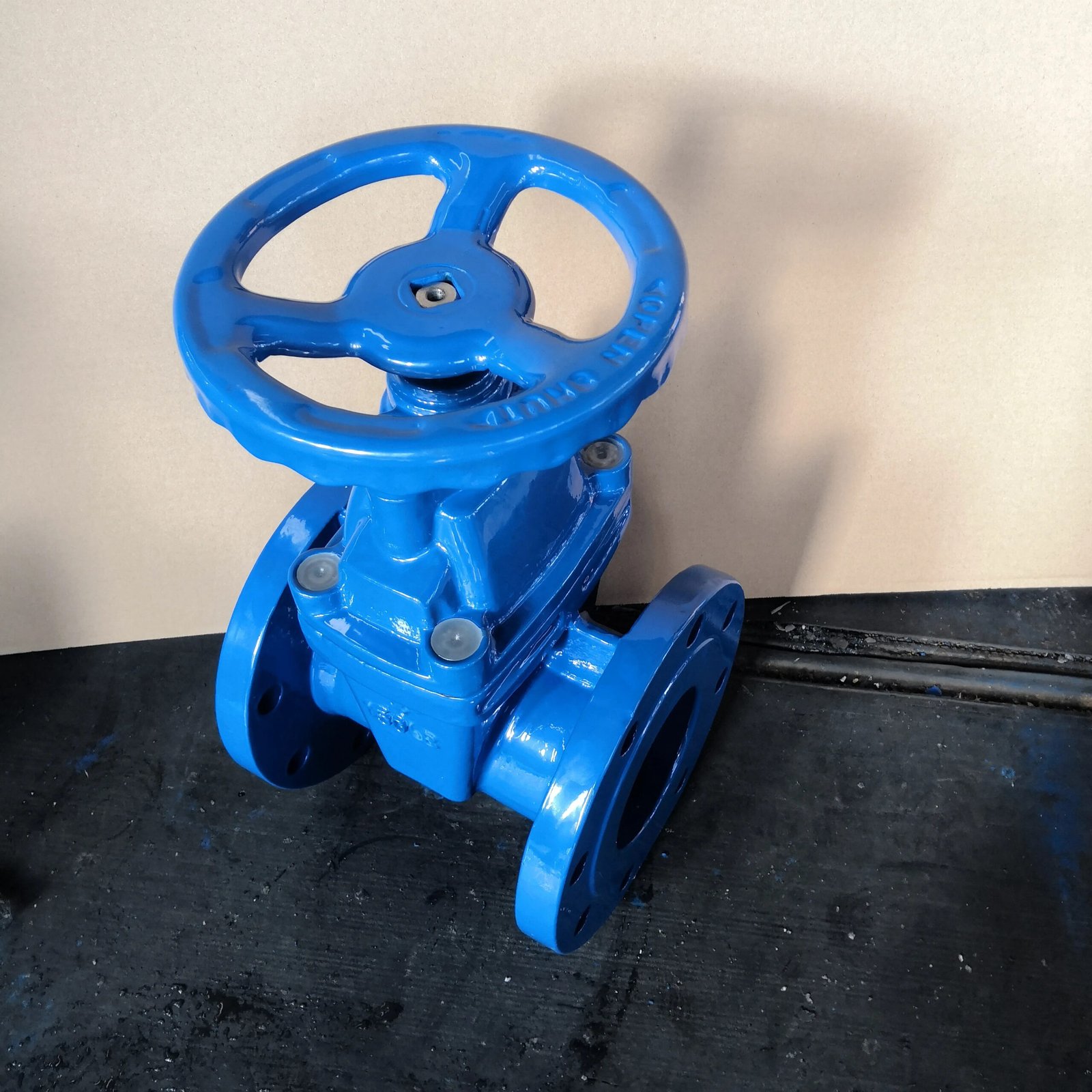

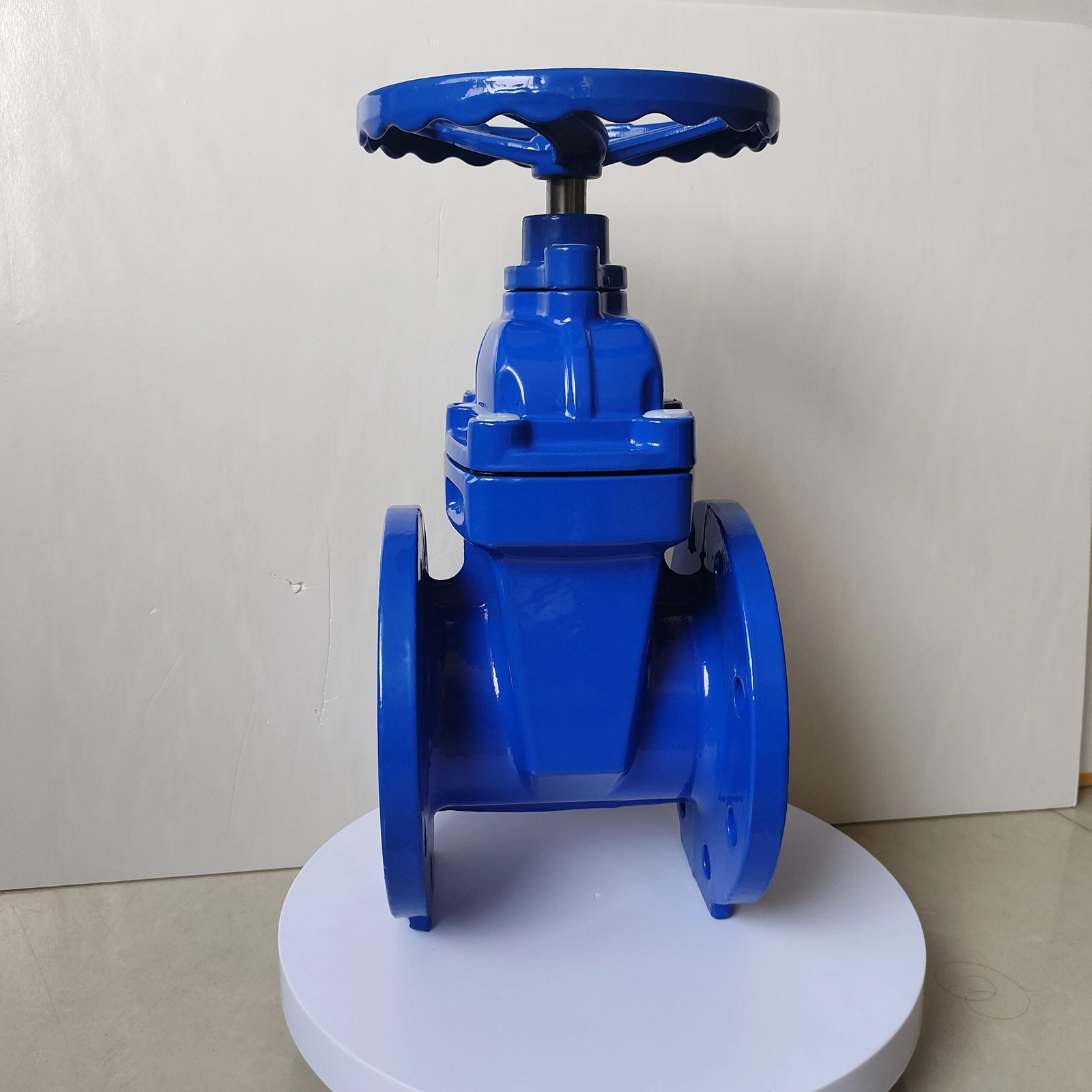

- Product name : Din 3352 OSY PN16 Resilient Gate Valve For Industrial Plumbing System
- Body : Ductile Iron
- Seal Material : Brass metal seal
- Nominal diameter : DN50-600
- Connection : Flange
- Standard : DIN3352 F4
- Working Temperature : ≤ 120℃
- Working pressure : PN10/PN16
- Input connection size : 4 inch
- Color : Customized
