Description

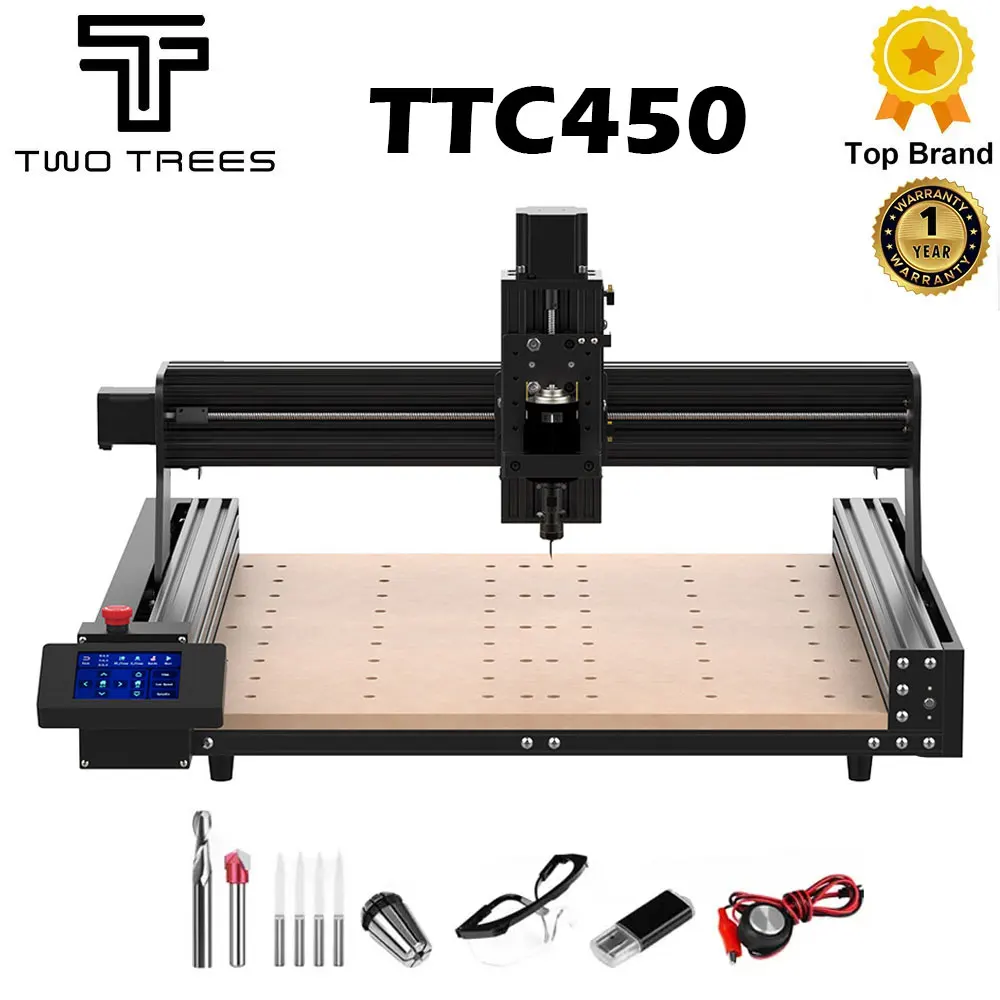

TWOTREES TTC450 CNC Laser Engraver Wood CNC Router Milling Cutting Machine Laser Engraving Machine For Acrylic PCB PVC Metal
Features:

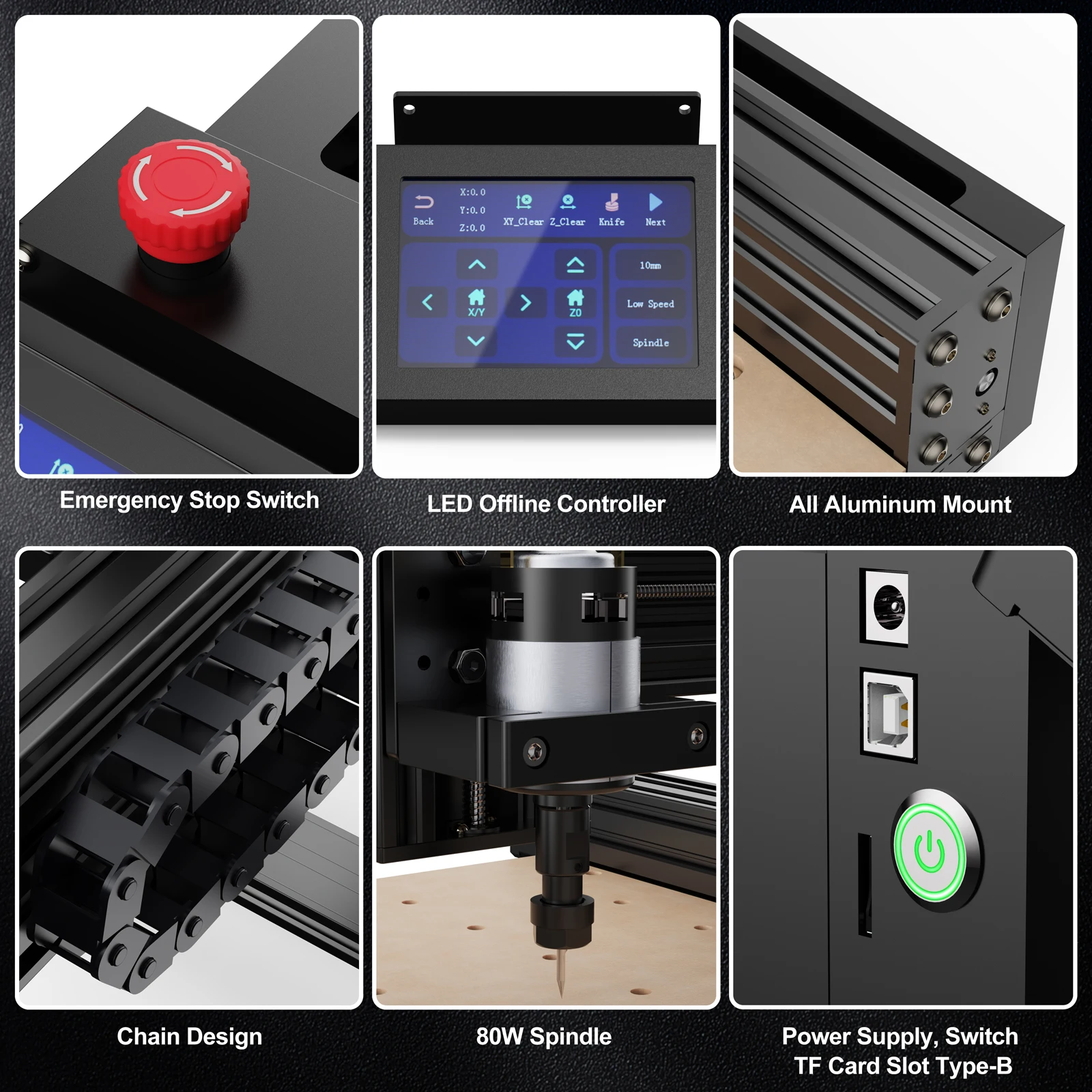

▶ 80W Module, powerful 775 spindle, with rigid H-Beam structure, Leadscrew Driven, Y-Axis Dualscrew drive, Z-Axis Optical Axis Drive deliver more stability than the traditional V-slo t drive.
▶ Easy to engrave and cut various materials such as MDF, PVC, acrylic, solid wood, particle board, plywood, organic board, epoxy resin, nylon, PCB, aluminum, copper, carbon fiber board, etc.
▶ Adopts X, Y, Z three-axis movement control, the Z-axis movement accuracy is up to 0.0025mm,thereby improving the accuracy and stability of the product.
▶ The engraving head is compatible with a wide variety of clamp sets for different carving needs. Comes with a blade head.
▶ Equipped ESP32 chip, 32-bit microprocessor, high speed dicing. Built-in WiFi module, it supports Computer, APP, and Screen control directly.
▶ All metal structure, 70% pre-assembled parts with modular design makes installation easier than ever before. 460x460x80mm work area provides a large space to create.
Brand： TWO TREES
Model： TTC-450
Engraving area: 460mmX460mmX80mm
Power adapter power：120W, 5A, 24V
Spindle parameters ： 24V 5A, 775 motor 8000RPM
Tool setting： software control
Control Board Compatibility： GRBL
Engraving speed MAX : MAX800mm/min
Limit switch: X, Y, Z three-axis double limit + ESTOP
Engraving accuracy: 0.01mm
Stepper driver: A4988 1.3A (other drivers can be connected to the motherboard)
Linear transmission mode: Built-in POM wheel
Stepping motor NEMA 23 (2 phases, 1.5A) torque 20mN. m
Transmission type ： T8 screw pitch 2mm lead 4mm screw / Y-axis Double Y-axis with built-in rollers
Emergency stop switch Yes
Harness management: XY energy chain
Machine weight kg: 19.2kg
Shipping weight kg: 20kg
CAM software
control: Candle
Programming: CarvecoMaker, Artcam, Easel
Operating system Windows XP/7/8/10, MAC OS
Engraving materialsEngraving and cutting MDF, PVC, acrylic, solid wood, particle board, plywood, organic board, epoxy resin, nylon, PCB, aluminum, copper, carbon fiber board, etc.
