Description
Upgraded ANLEON S2

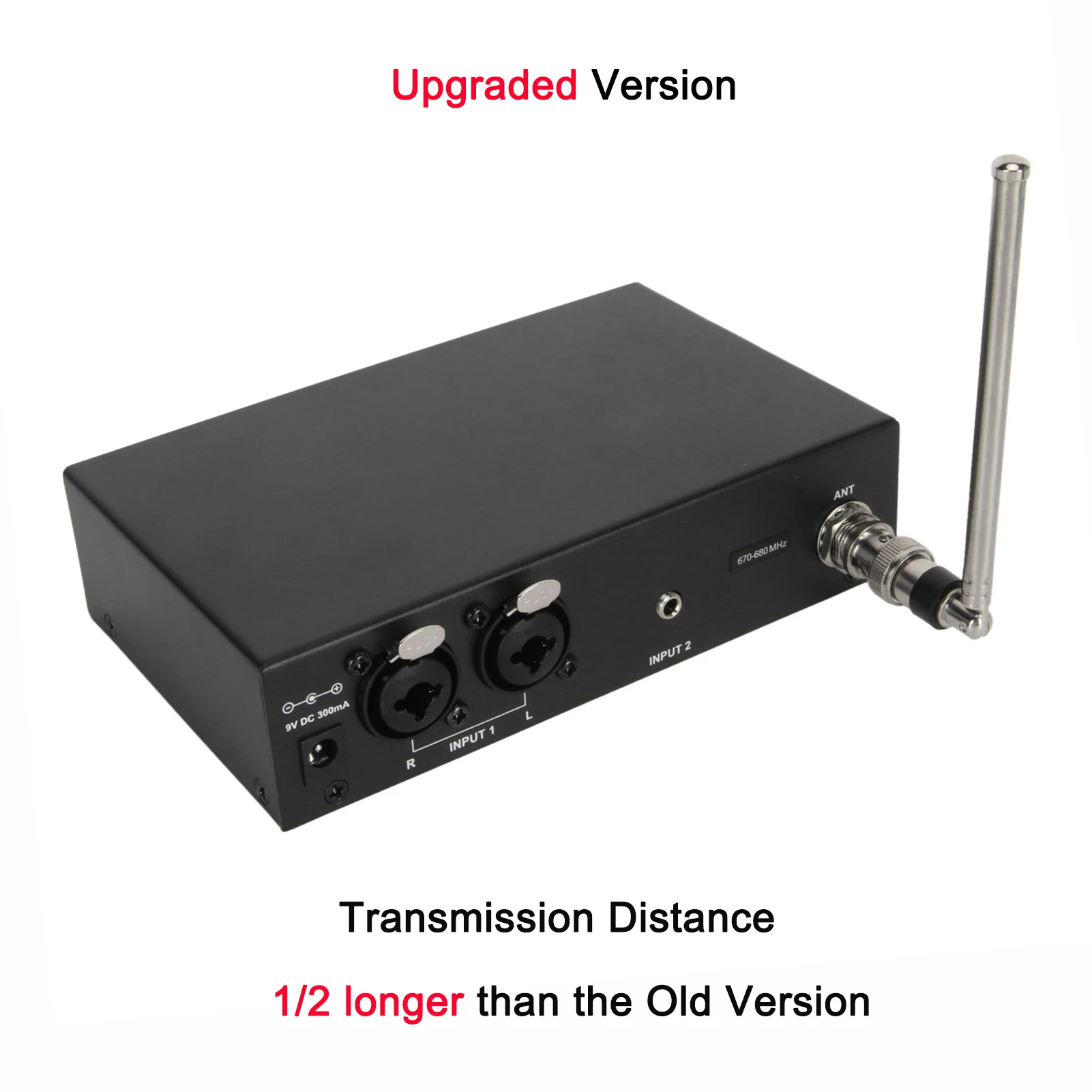

1. The upgraded transmitter has increased a 3.5mm input port and can be connected to the live sound card, which can be used as a live streaming ear return.
2. The upgraded transmitter RF circuits and sound circuits are re-designed and increase the chip. The effect is better.
3. The transmission distance is 1/2 longer than the old version, which is more stable.
3. The upgraded S2 is compatible with the old S2.

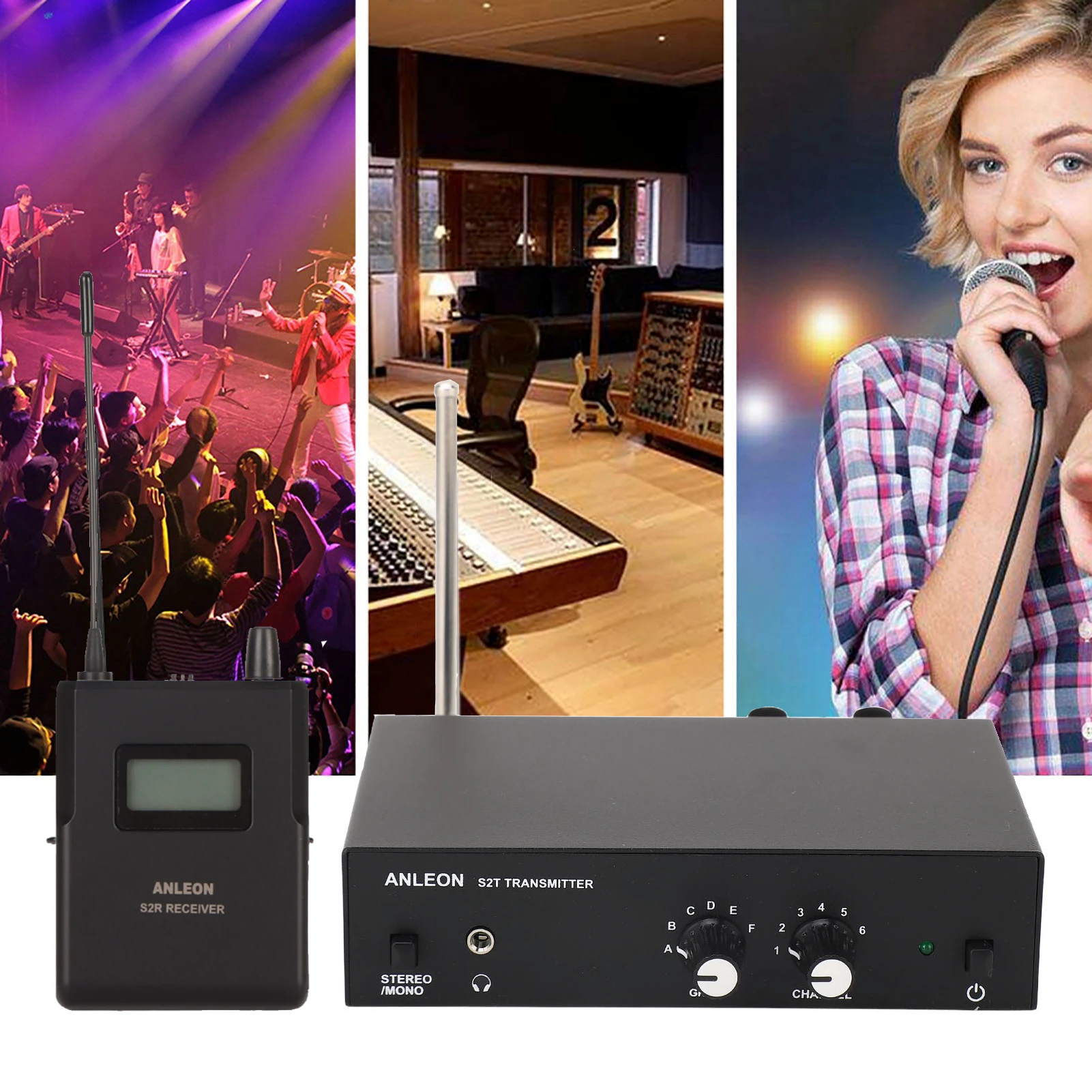

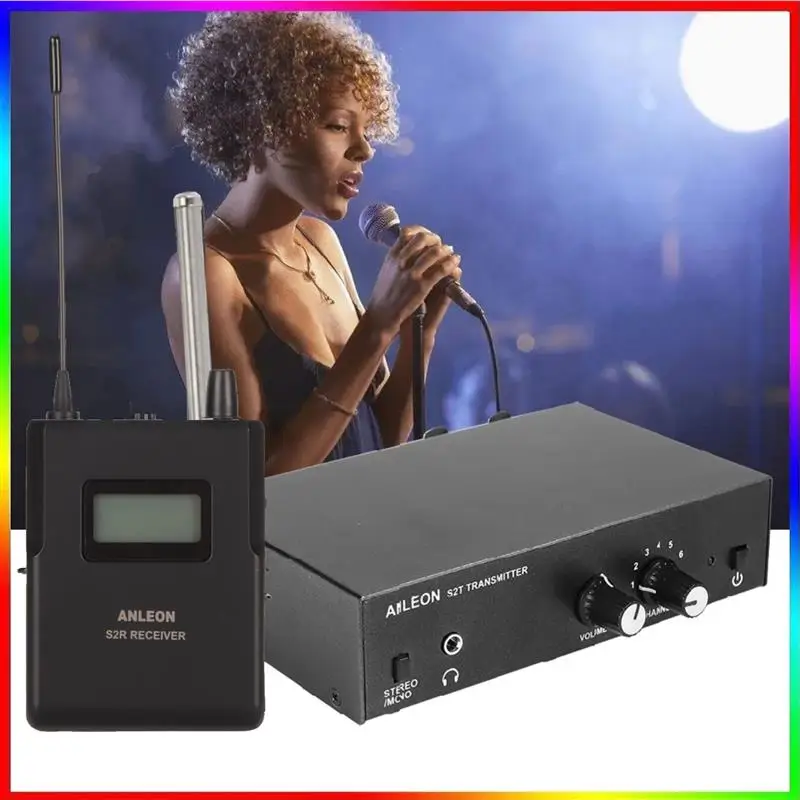

ANLEON S2 is an IEM system designed for stage performance and broadcasting. High S/N ratio and dynamic range ensures optimal audio quality. The dual XLR in-puts allow 2-channel, mono or stereo operation with a convenient mix function which allows you to run two sources into the S2.
Specifications:
Channel: 36
Headphone output: 3.5mm jack socket
Transmitter Power Supply: DC 9-12V/300mA
Receiver Operating Time: up to 12 hours, 2×1.5VAA (please use alkaline battery or rechargeable Ni-MH battery, AA lithium battery is not recommended. Using AA lithium batteries can cause interference. Note: You need to buy the battery separately).
Operating Range: 50m indoors and over 100m outdoors(environment dependent)
RF Output Power: 10mW
signal-to-noise Ratio: 80db(A)
Modulation Mode: FM stereo
Frequency Response: 20Hz~18KHz
S2 Stereo Transmitter
1. Stereo/ Mono switch: Stereo mode(the device outputs the signal fed into the left input to the left headphone and the right signal to the right headphone).
Mono mode(Channel L and channel R are mixed and output to both headphones.)
2. Headphone out: 3.5mm jack provides monitoring of audio feed at the transmitter.
3. Group knob: six groups from A to F cooperate with CHANNEL to set the transmitter frequency.
4. Channel knob: Set the transmitter frequency with GROUP, six in each group, 36 frequencies in total.
5. Power indicator
6. On/Off button: Press to turn on the power and press again to turn off the power.
7. DC input: Plug the included power supply in here, 9-12V DC.
8. Combination input jacks offer both XLR and 1/4″jacks.
9. 3.5mm jacks : connect to the input signal source (Audio Interface, Mp3, PHONE). Note that only one sound source can be connected to the device. INPUT1 and INPUT2 cannot be connected to the sound source at the same time.
10: Antenna output(ANT). BNC socket.
S2 Stereo Receiver
1. LCD screen: Displays frequency, channel and battery level.
2. Antenna: Receive RF signal from the transmitter.
3. Power indicator: green indicates that power is working properly and red indicates low battery or no signal.
4. Connect your earphones to this 3.5mm jack.
5. On/off volume knob.
6. Frequency adjustment button: Hold on the Channel Button so that the frequency changes quickly, while short press the button, the Frequency changes slowly.
7. Battery compartment: install two AA batteries in the direction depicted on the battery compartment.
Notice:
1. When using multiple S2 transmitters at the same time, set each transmitter to different frequencies, and the interval between the transmitters should be at least 1m. A maximum of three sets of S2 shall be used at the same time in each frequency band.
2. If you use the product near a phone charger or mixer AC adapter, noise may be generated. If this occurs, move the product away from the device.
3. Be careful of interference noise caused by the surrounding radio wave environment and use of multiple systems.
4. Lithium AA batteries are not recommended for S2 Receiver. And you need to buy the battery separately.
5. When connecting to a mixer, be careful on how much signal you send to the S2 transmitter, it does not need much. If the input signal is too much, the output signal of the receiver will be distorted.
Package List:
1 x Transmitter
1 x Receiver
1 x Earphone
4 x Ear Caps
1 x Antenna
1 x Power Adapter
1 x Instruction Manual
ANLEON S2 Upgraded Version
==========
Hign-concerned Chemical : None
Diaphragm : S-Mall
Polar Patterns : Uni-directional
Package : Yes
Communication : WireLess
Set Type : Transmitter Sets
Transducer : Condenser Microphone
Use : Conference Microphone
Style : Handheld Microphone
Origin : Mainland China
Certification : none
Model : ear wireless system monitor
Name : wireless in-ear monitoring system
Feature : headrest monitor
Type 1 : Wireless Monitor System
Plug : EU/UK/AU/US Plug
Option : 670-680mhz /526-535MHZ/ 561-568MHZ/863-865MHZ
Type 2 : Digital Sound Stage
Type 3 : In ear Monitor System
Fit : For ANLEON S2
Type 4 : Wireless In Ear Monitor
Type 5 : Wireless Monitor System
