Description
Saw Blade Installation Video
It support blade height adjustment with 0-14mm range

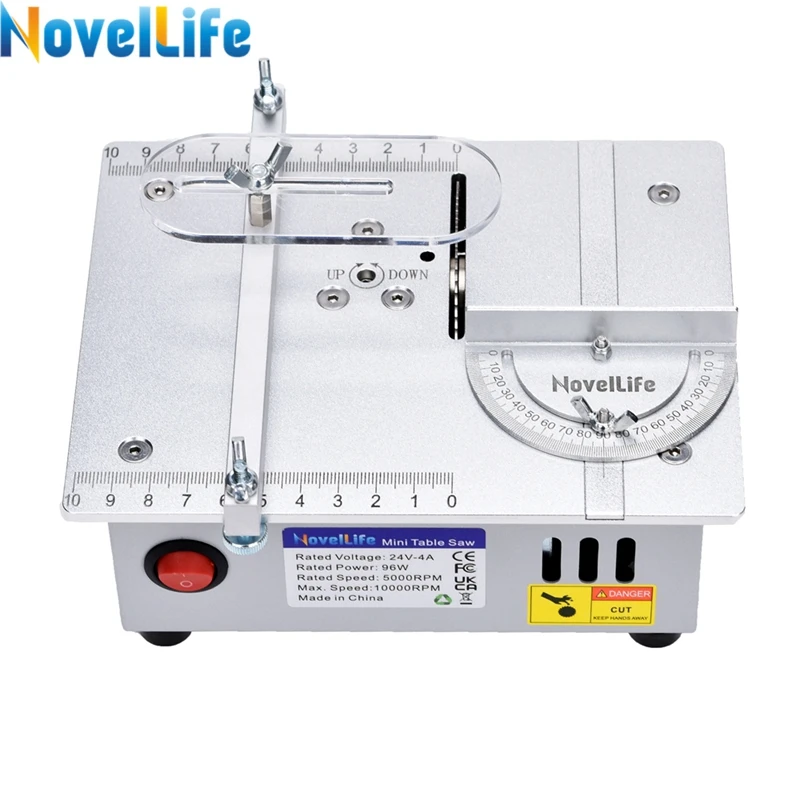

Mini Table Saw Small Woodworking Electric Bench Saw Handmade DIY Hobby Model Crafts Cutting Tool 775 Motor 96W 63mm HSS Blade R1
Are you DIY model fans or expert? Have you ever dreamt of having a handy mini table saw to cutting the handmade model crafts material with small size low noise and fast cutting speed. While this mini table bring your hope to the reality. Solid thich steel unibody frame equipped with 775 type high torque motor providing ultra strong cutting power but low noise. It has graduated thick aluminum top plate and baffle meeting your accure cutting needs. Equipped with vaccum cleaner interface ensure you connect it to the clearner directly to clean to the cutting material chips easily. Comes with 63mm HSS blade, 63mm alloy blade and 60mm diamond blade easy to cut PCB, PVC, balsa plate, acrylic materials the best choice for DIY model makers.
-Model:R1
-Working Voltage:DC 24V
-Motor:775 type
-Power Supply Input Voltage: AC100-240V
-Power Supply Output Voltage:DC12-24V
-Load-free Speed:5000RPM
-Blade Height Ajdustment Range: 14mm
-Saw Blade Diameter:63mm/2.5inch
-Saw Size:18X14X8cm/7.1X5.5X3.2inch(L*W*H)
-Compatible Saw Blade Bore Diameter: 16mm
-Package Weight:1.85kg

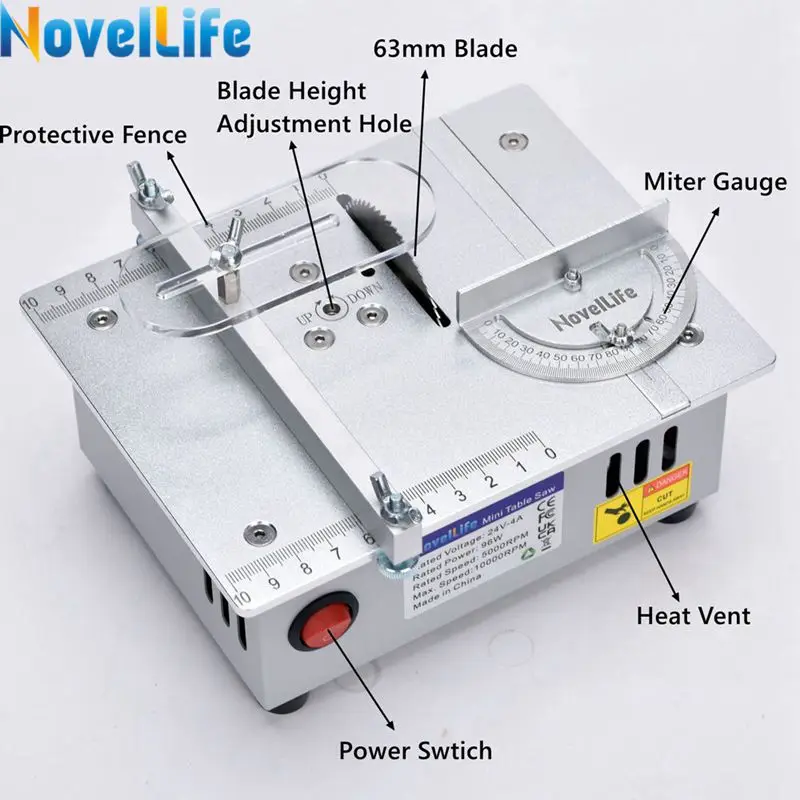

Feature:
1) Solid thick steel unibody frame durable no deformation ensure the flatness and high quality cutting performance
2) 775 type ball bearing motor provide ultra strong cutting power but low noise, four rubber damping pad, anti-slip and shock-absorbing when working, you can use it just at home
3) 63mm HSS circular saw blade, 63mm alloy blade and 60mm diamond saw bade can be used to cut plastic, balsa, PVC, PCB board, bamboo to meet your most cutting demands
4) Equipped with blade height adjustment structure and 0-14mm height adjusting range to meet your

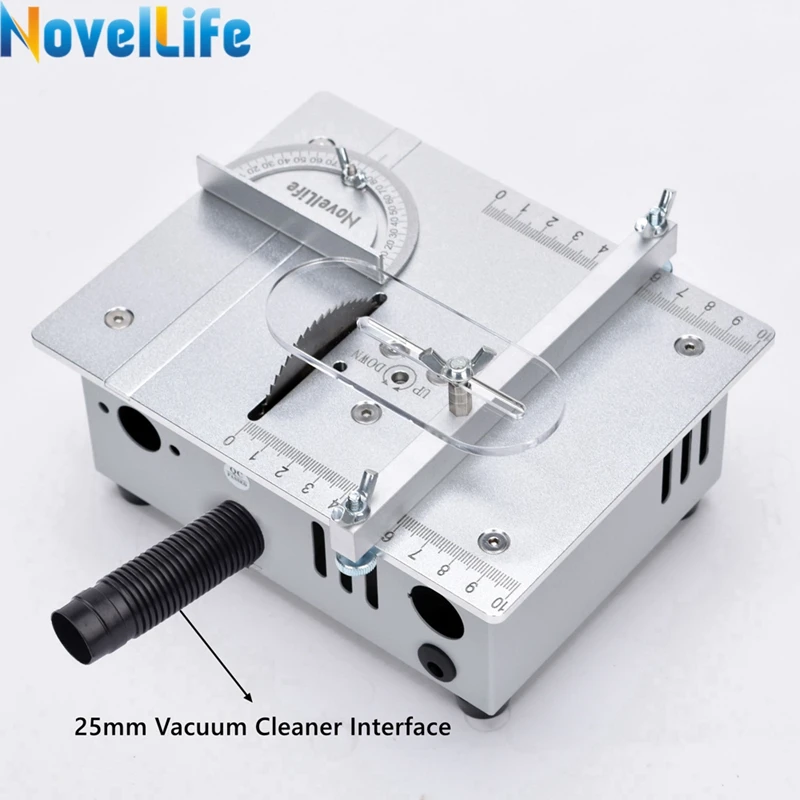

5) Equipped with vaccum cleaner interface ensure you can connect it to the cleaner directly and clean the cutting material chips when do cutting works
6)Equipped with protective fence on the top and scaled desktip pecisely cutting will be easier and safer
7) Equipped with 7 class power adapter enable you to adjust the rotating speed easily to meet different cutting speed
8) Compact size save your worktable sapce, perfect for DIY small woodworking crafts

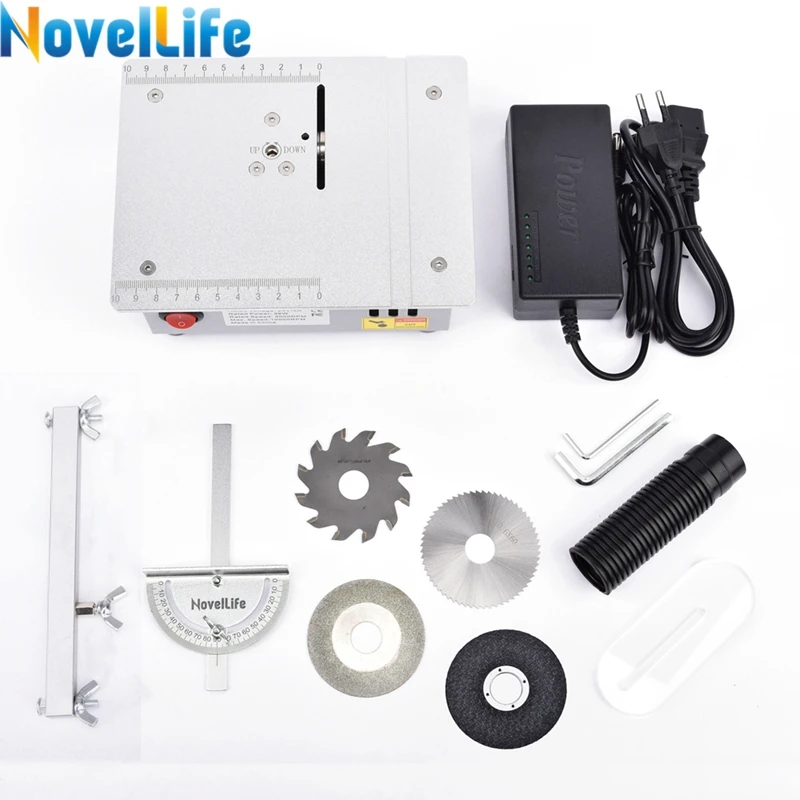

Package included:
1X R1 Mini Table Saw
1X Power Adapter
1X 63mm HSS Saw Blade
1X 60mm Diamond Saw Blade
1X 63mm Alloy Blade
1X 60mm Resin Blade
Note:
the saw blade over the surface with 14mm(63mm HSS saw blade installed) but it do not mean the cutting thickness is 14mm, it depends on the cutting meterial and the saw blade type
