Products Description

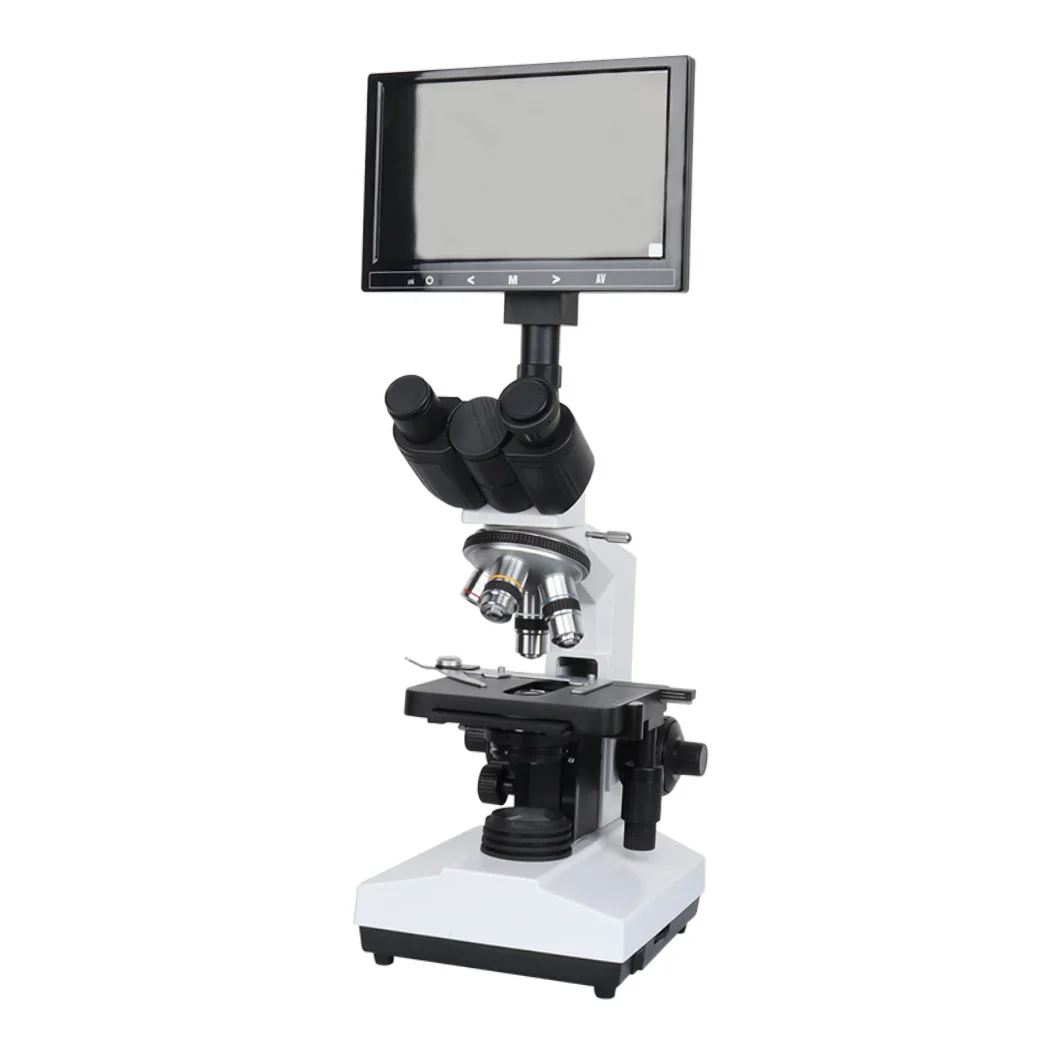

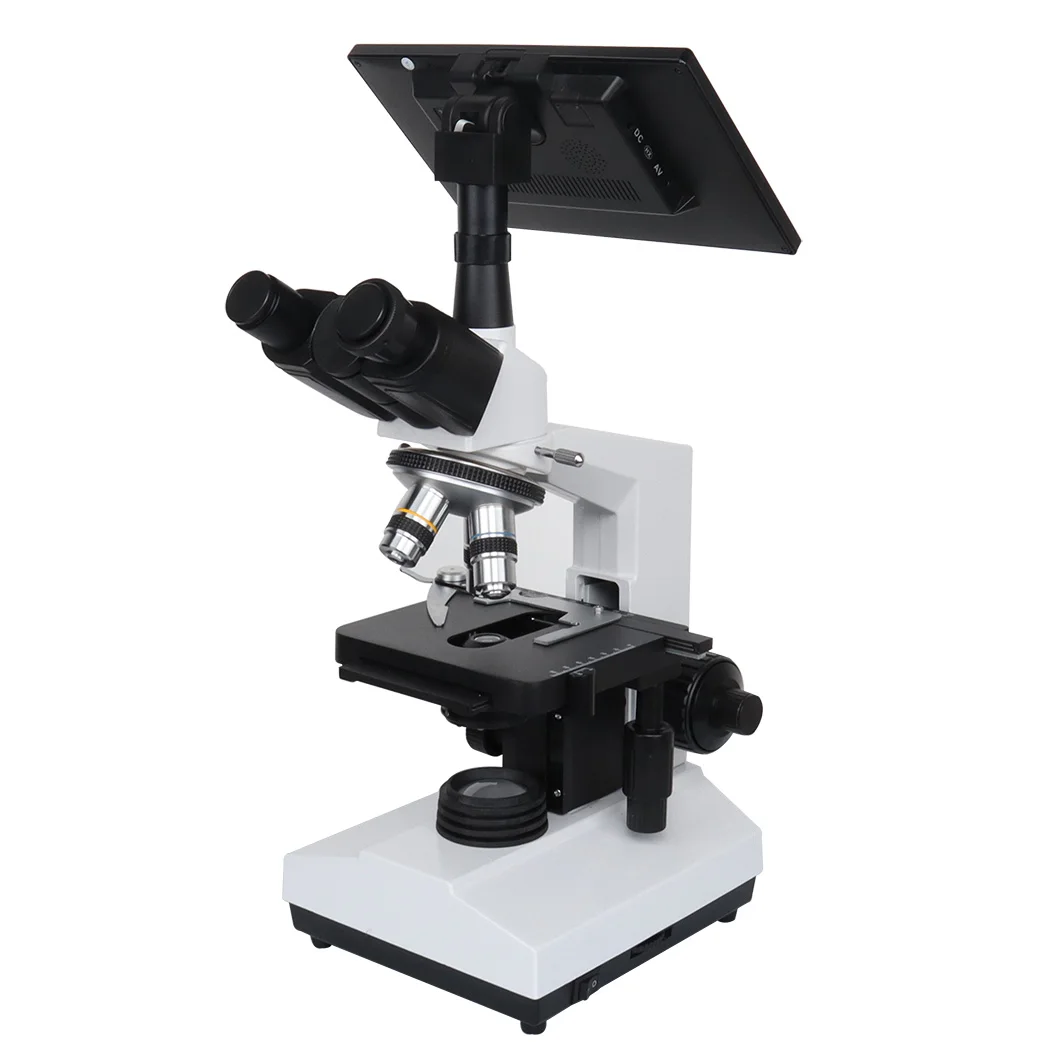

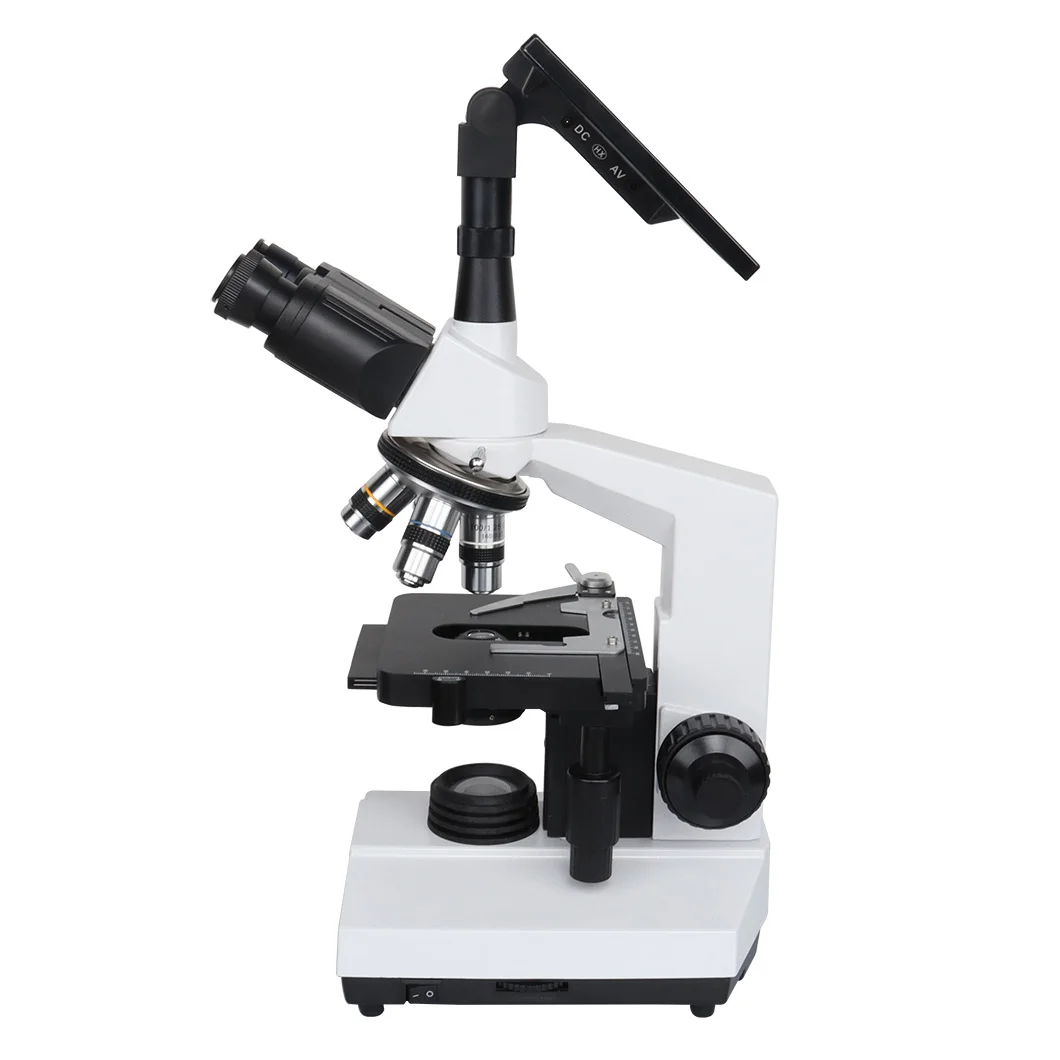

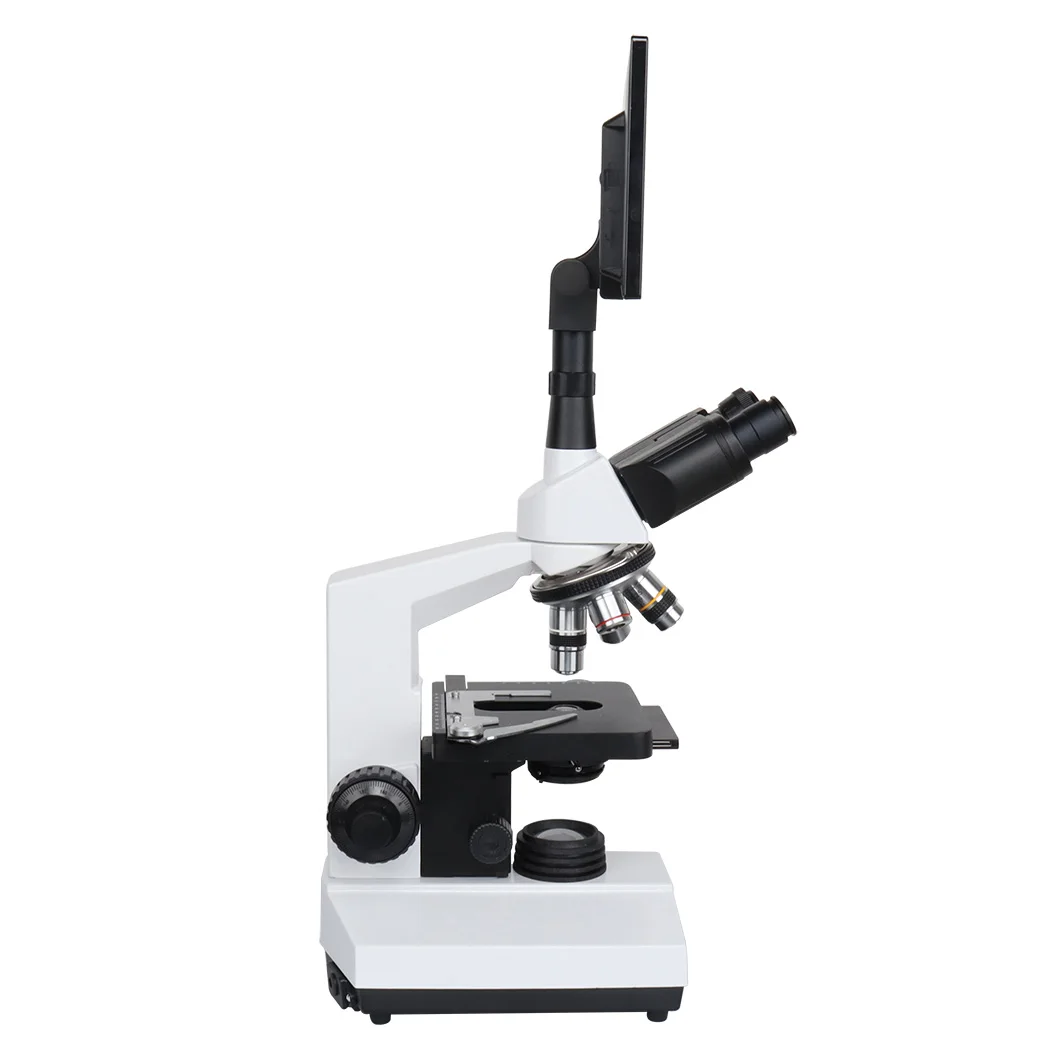

HXSZ-107TD Binocular Bioxlogical Microscope with Camera
Features:
HXSZ-107TD Microscope is convenient to observe biological slices, biological cells, bacteria and living tissue culture, fluid precipitation observation and research. It is widely used in teaching demonstration, biochemical experiments, clinical research ect.
Technical Specifications
Eyepiece
Wide field eyepieces WF10X (WF16X optional)

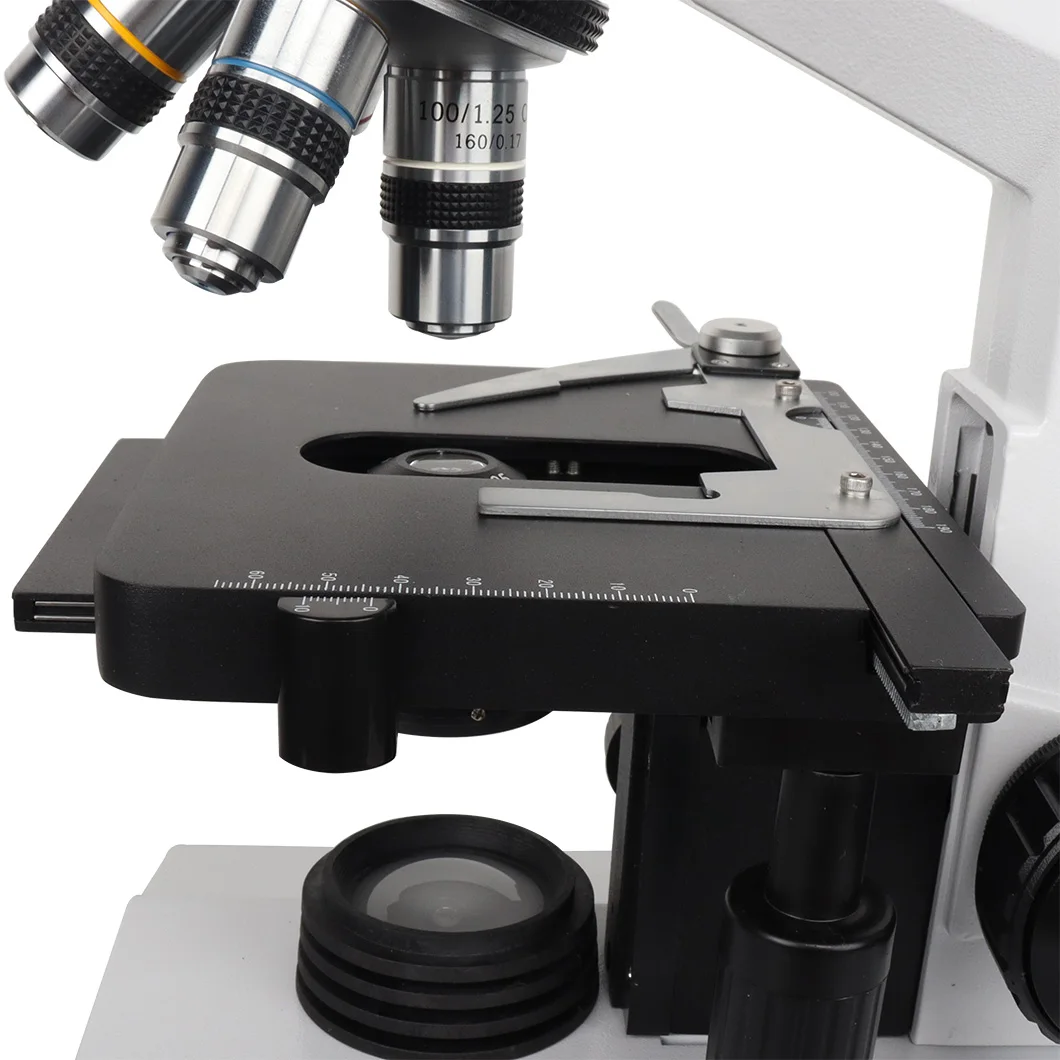

Achromatic objective
4X,10X,40X (spring),100X (spring, oil)

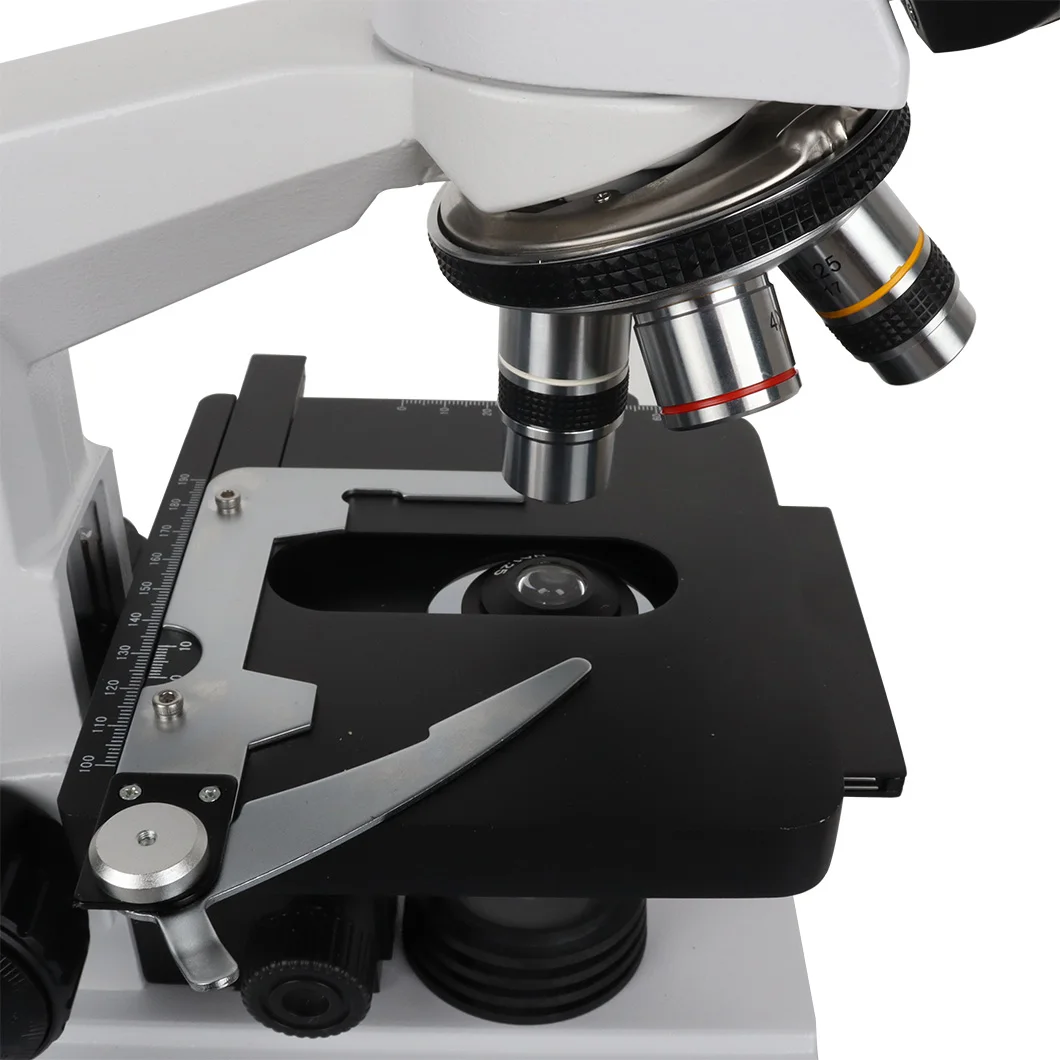

Stage
Double layer mechanical stage, size: 140*140mm, moving range 75*45mm
viewing head
Compensation free trinocular head
nosepiece
Quadruple
Focusing
Coaxial Coarse And Fine Adjustment, Focusing Range 30mm, interval 0.002mm
Illumination & Condenser
N.A=1.25 Abbe condenser &Iris diaphragm
Electric light source(Halogen Lamp or LED)
Power
AC Input 220V or 110V, DC output 6V
Detail Images
