[include 1 year 24v truck software]LAUNCH X431 SmartLink C2.0 Heavy-Duty Diagnostic Module/Machinery/Commercial Vehicle for X431

Description

Launch X431 SmartLink C 2.0 Heavy-duty Truck Module for Commercial Vehicles/ Passenger/ New Energy Cars Work with X-431 PRO3/ V+/PRO3S ,include 1 year 24v truck software
NOTICE: The remote assistance is not available now.it comes with 1 year 24v truck software ,so you no need extra buy truck software
Launch X-431 SmartLink C 2.0 is a heavy-duty vehicle diagnostic module developed by Launch Company based on Linux system, dual processor Cortex-A7+Cortex-M7, 8G storage, 256M storage, 320*480 resolution.
It supports Bluetooth, Wi-Fi, USB and other communication methods, and can be used with X-431 PRO3S and PRO5 series. It also support full system fault diagnosis, with functions such as code reading, code clearing, data stream reading, special functions, and action test. Covering for Cummins, for Bosch, for Weichai, for Shangchai, for Yuchai, for Xichai, for Chaochai, for Yangchai, for Quanchai and other engine diagnostic software, it supports trucks, buses, construction machinery, agricultural machinery, trailers, ships and other types of vehicle software.
BEST OF THE BEST:Upgraded X431 HDIII,Compared with X-431 HDIII, the SmartLink C 2.0 is more powerful in function.
X431 HDIII SCAN TOOL, DESIGNED TO SUPPORT 24V HEAVY TRUCKS AND COMMERCIAL VEHICLES
Connect with scanners such as X431 PRO3S+, V+/PRO3, PAD3, etc., so that it can support the diagnosis of the whole system of 24V commercial vehicles
Engine Diagnosis:support Chaochai, Dachai, Laiyang Power, Quanchai, Shangchai, Weichai, Xichai, Yangchai, Yuchai, Yunnei Power, Cummins, Xinchen Power, Chaochai Xinfeng, Great Wall Xinfeng, Doosan, Huayuan Lai, Platinum, Isuzu and other engine systems;
ABS System:WABCO ABS, Delphi ABS, Knorr ABS, Bosch ABS, Komi ABS, Localized ABS (liberation), Wanan ABS, SABS, Asia Pacific ABS, Hongding ABS, Wanan ABS (liberation), Yuan Feng Qingqi ABS, Wanan Qingqi ABS, Ford ABS, Wandu ABS, Jingxi Heavy Industry ABS, etc.;
Natural Gas Diagnosis:support Cummins natural gas, Nanchong natural gas, Shangchai natural gas, Weichai natural gas, Xichai natural gas, Iveco natural gas, Yuchai natural gas, heavy gas natural gas, Chaochai natural gas, Yunzhong natural gas system, etc.;
Post-Processing Diagnosis:support Guangxi Sanli tail gas post-treatment, Tenneco post-treatment, Kailong post-treatment, Tianlan DCU, Bosch post-processing system diagnosis, etc.
Calibration Function:support Chaochai calibration, Dongfeng Renault calibration, Cummins calibration, Shangchai calibration, Weichai calibration, Xichai calibration, Yuchai calibration, heavy truck calibration, Yangchai calibration, etc.;
ECU Brush Writing:support Bosch ECU brush writing, Nanyue single pump ECU brush writing, Bosch bottom layer brush writing, natural gas ECU brush writing, electric ECU brush writing, Delphi ECU brush writing, China National Heavy Duty Truck ECU brush writing, Tenneco DCU Wait;
WHY CHOOSE LAUNCH X431 Smartlink CHEAVY DUTY TRUCK MOULDE
1.Full system fault diagnosis, with functions such as code reading, code clearing, data stream reading, special functions, and action test. Covering for Bosch, for Weichai, for Shangchai, for Yuchai, for Xichai, for Chaochai, for Yangchai, for Quanchai and other engine diagnostic software, it supports trucks, buses, construction machinery, agricultural machinery, trailers, ships and other types of vehicle software. (Note: LAUNCH X-431 HD SmartLink C 2.0 Module cannot be used alone. It only works for LAUNCH Tablet of X431 V+, X431 PRO3, X-431 PRO3S Series.)
2. Wireless Bluetooth Diagnosis
Host machine and diagnostic connector adopt Bluetooth connection, making diagnosis more convenient.
3. Industrial shockproof design
Industrial shockproof design is perfect for the working environment in repair shops.
4. It supports commercial vehicles, passenger vehicles, new energy and other models.
5. Full comprehensive diagnostic software functions.
6.Support CANFD & DOIP, No need to purchase extra connectors
7.IP65 waterproof and dustproof shell, shockproof protective shell, it can still work safely and efficiently in the working environment.
X431 Heavy Duty Truck Scan Tool Vehicle Diagnostic Range
Compatible with U.S. heavy truck car models:

For Cummins, For DS_USAFord,For Allison,For Bremach,For Caterpillar,For Detroit,For Freightliner, For International,For Kenworth,For Peterbilt , For Sterling,For WABCO_ABS, For Western_star,For Mack
Compatible with Europe heavy truck car models:

For Benz,For Bosch,For Deutz,For ERF,For Irisbus,For JCB,For Man,For Neoplan,For Renault,For Setra,For Volvo,For DAF
Compatible with Asian heavy truck car models:

For Astra,For Fuso,For Hino,For Isuzu,For UD,For Tata,For Ashok_leyland,For Doosan,For Hyundai,For Sunwin,For DLF,For Dachai,For Fawjiefang,For Fotonauman,For Bonluck,For Chaochai,For Goldendragon,For Higer,For Iveco,For JMC,For Quanchaity,For Sitcar,For Steyr,For Sunlong,For Sunwin,For Xichai,For Yangchai,For Yufeng,For Zhongtong,For JAC,For Scania,For Shangchai,For Sinotruk,For WP_diesel,For Yuchai,For Utong
More software support:
1.Demo:Diagnostic Demo, Quick Start

2.AUTOSEARCH:Save time on manual entry and lead to efficient work.

3.HD_OBD:24V Truck OBD full function diagnosis.

4.HD_ABS,HD_CREDO,HD_CASE,HD_MACHINERY,HD_NATURE,HD_SCR,
Features:
Work as a VCI (Vehicle Communication Interface)

Work as a Local J2534 PassThru Device

Work as a Remote J2534 PassThru Device

Note: LAUNCH X-431 HD SmartLink C 2.0 Module cannot be used alone. It only works with LAUNCH Tablet of X431 V+, X431 PRO3, X-431 PRO3S Series.
The SmartLink C system consists of the following two parts:
1.SmartLink Service Platform — For binding the SmartLink C dongles and posting the remote repair orders (Note: Orders can be submitted only after the SmartLink C dongle is successfully bound)

2. SmartLink C Dongle — Connects with vehicle’s Data Link Connector (DLC) to obtain vehicle information before submitting repair orders.
Heavy Duty Software List：
for Renault Heavy Vehicle
for IRIZAR heavy duty vehicle
for IRISBUS heavy duty truck
for Yutong Bus
for Mercedes Benz Heavy Duty Truck
for VOLVO heavy duty vehicle
for ISUZU heavy duty vehicle
for IVECO heavy duty truck
for BREMACH
for IRISBUS
for CREDO
for KNORR ABS
for ……….

Total 88 softwares

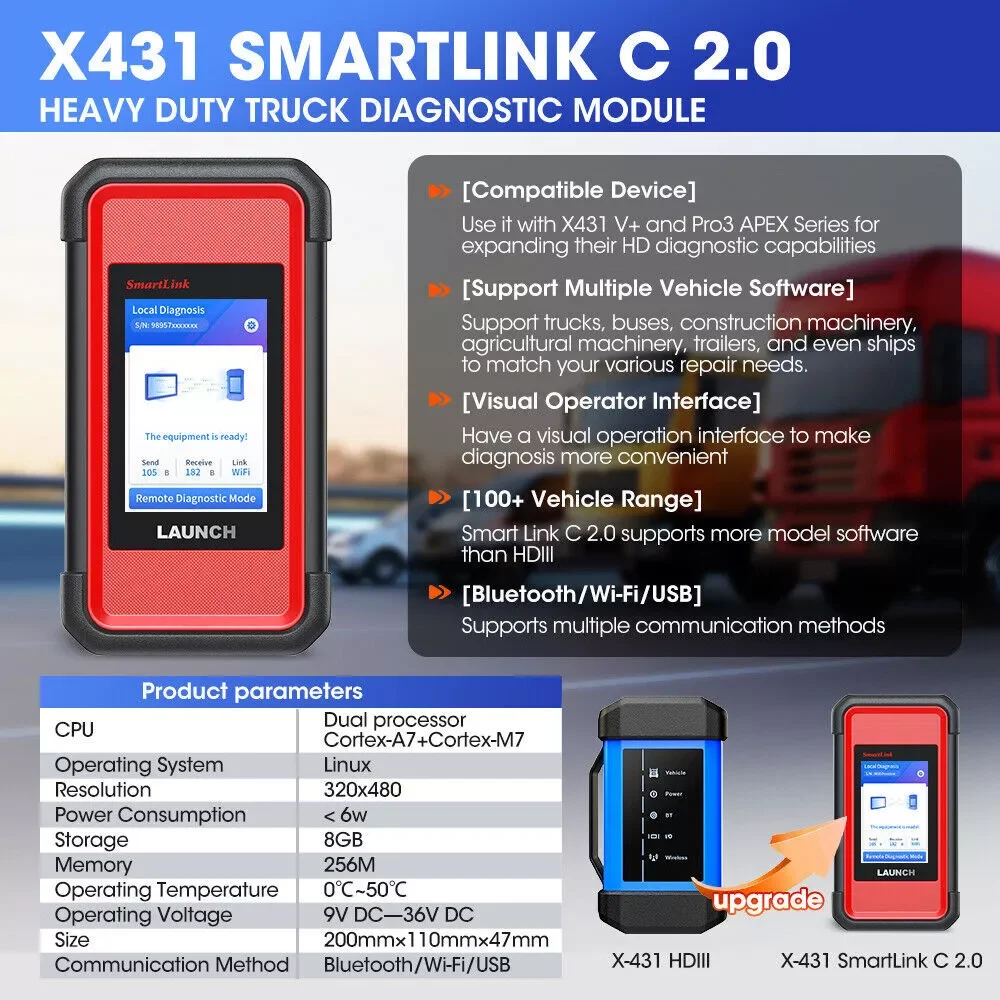

Product parameters:
CPU: Dual processor Cortex-A7+Cortex-M7
Operating system: Linux
Resolution: 320×480
Power consumption: < 6w Storage: 8GB Memory: 256M Working temperature: 0℃~50℃ Working voltage: 9V DC—36V DC Dimensions: 200mm×110mm×47mm Communication method: WIFI/Bluetooth/Ethernet

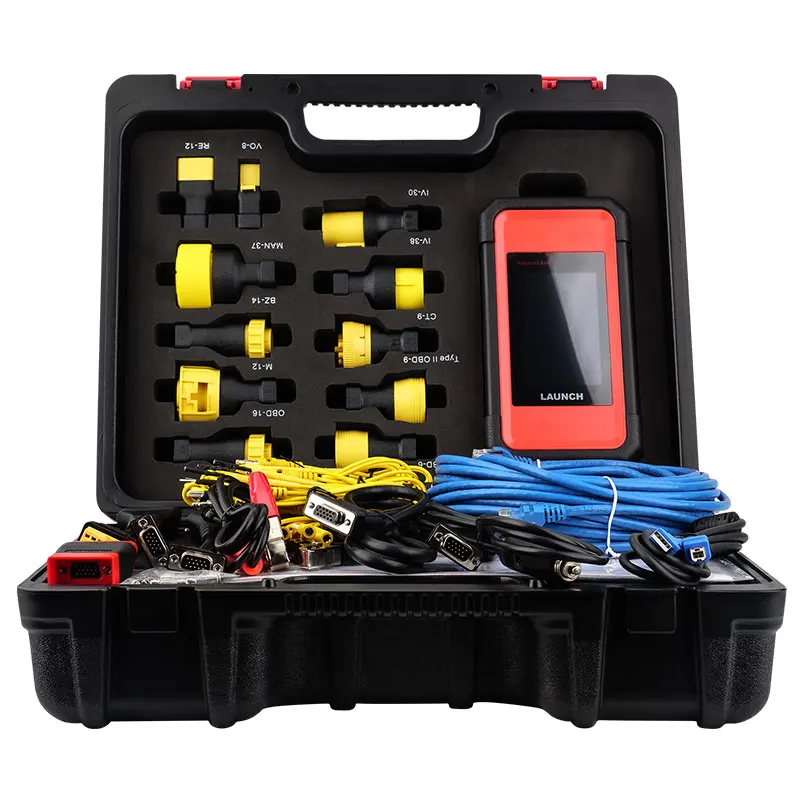

LAUNCH X431 smartlink Packing List:
1pcs x Overseas super remote diagnosis box V2.0 (maintenance end, 98934, no label)
1pcs x HD15F to OBDII 16 male integrated test connector, RoHS
1pcs x DB15F to HD15F test main line (without DC), L=1000mm, RoHS
1pcs x Double clamp power cord (English, without LAUNCH), RoHS
1pcs x Cigarette lighter cable (English, no LAUNCH), RoHS
4pcs x Fuse, AC250V/5A, φ5*20mm ROHS
2pcs x Fuse, AC250V/5A, φ6*30mm ROHS
1pcs x X431 PAD4HD USB Type A to Type B Cable, RoHS
1pcs x Category 6 Gigabit Network Cable (Blue) 15m, RoHS
1pcs x SmartLinkC V2.0 Heavy Duty Truck Module Multilingual Quick Start, RoHS
1pcs x X431 PAD4HDB15M-For CAT-9/CAT 9PIN integrated diagnostic connector, RoHS
1pcs x X431 PAD4HDB15M-For VOLVO-8/Volvo 8PIN integrated diagnostic connector, RoHS
1pcs x X431 PAD4HDB15M-16 Integral diagnostic connector, RoHS
1pcs x X431 PAD4HDB15M-Type II OBD-9 Integral Diagnostic Connector, RoHS
1pcs x X431 PAD4HDB15M-6 Integral diagnostic connector, RoHS
1pcs x X431 PAD4HDB15M-For JUMPER-10 heavy truck jumper 10PIN diagnostic connector, RoHS
1pcs x X431 PAD4HDB15M-For IVECO-30/IVECO 30PIN Integrated Diagnostic Connector, RoHS
1pcs x X431 PAD4HDB15M-For IVECO-38/IVECO 38PIN Integrated Diagnostic Connector, RoHS
1pcs x X431 PAD4HDB15M-For MAN-12/Man 12PIN integrated diagnostic connector, RoHS
1pcs x X431 PAD4HDB15M-For BENZ-14/Benz 14PIN integrated diagnostic connector, RoHS
1pcs x X431 PAD4HDB15M-For MAN-37/Man 37PIN integrated diagnostic connector, RoHS
1pcs x X431 PAD4HDB15M-For RENAULT-12/Reynolds 12PIN integrated diagnostic connector, RoHS
1pcs x X431 PAD4HDB15M-For MITSUBISHI-12+16/FUSO 12+16PIN linear diagnostic connector, RoHS
1pcs x X431 PAD4HDB15M-For HYUNDAI-16/Hyundai truck 16PIN linear diagnostic connector, RoHS
4pcs x X-431 PAD IV electric control adapter cable 1,
4pcs x X-431 PAD IV electric control adapter cable 2,
4pcs x X-431 PAD IV electric control adapter cable 3,
4pcs x X-431 PAD IV electric control adapter cable 4,
4pcs x X-431 PAD IV electric control adapter cable 5,
4pcs x X-431 PAD IV electric control adapter cable 6,
4pcs x X-431 PAD IV electric control adapter cable 7,
4pcs x X-431 PAD IV electric control adapter cable 8,
4pcs x X-431 PAD IV electric control adapter cable 9,
1pcs xUniversal password envelope (without LAUNCH),
1pcs xSmartLinkC V2.0 Heavy Duty Truck Module Multilingual Quick Start,
