Description
Product Specifications

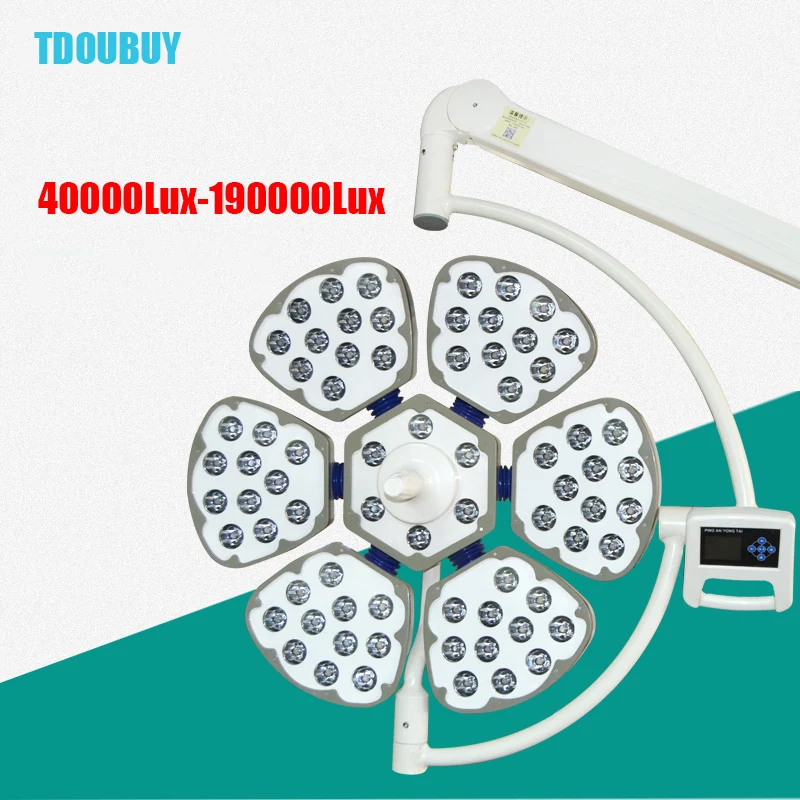

Illumination (adjustable)
≥40000-190000Lux
Number of bulbs：72 pcs
Bulb type：LED
Average lamp life ：≥60000h
LED bulb power：1W/3V
Color temperature (adjustable)：3700K-5000K
Color rendering index (adjustable)：≥85
Depth of focus(mm)：≥1000mm
Spot diameter(mm)：≥200mm
Bright adjustment：1%-100%
Power consumption (W)：80
Head warmed up：<1.5° C
Operating radius(mm)：≥2200
Working Radius：600-1800
Input Power：400VA
Voltage：AC100-240v 50/60HZ
Optimum installation height(mm)：2800-3000mm(It can also be customized according to the customer's room height for free, room height: 2300-3500mm)
Endoscopy mode：standard

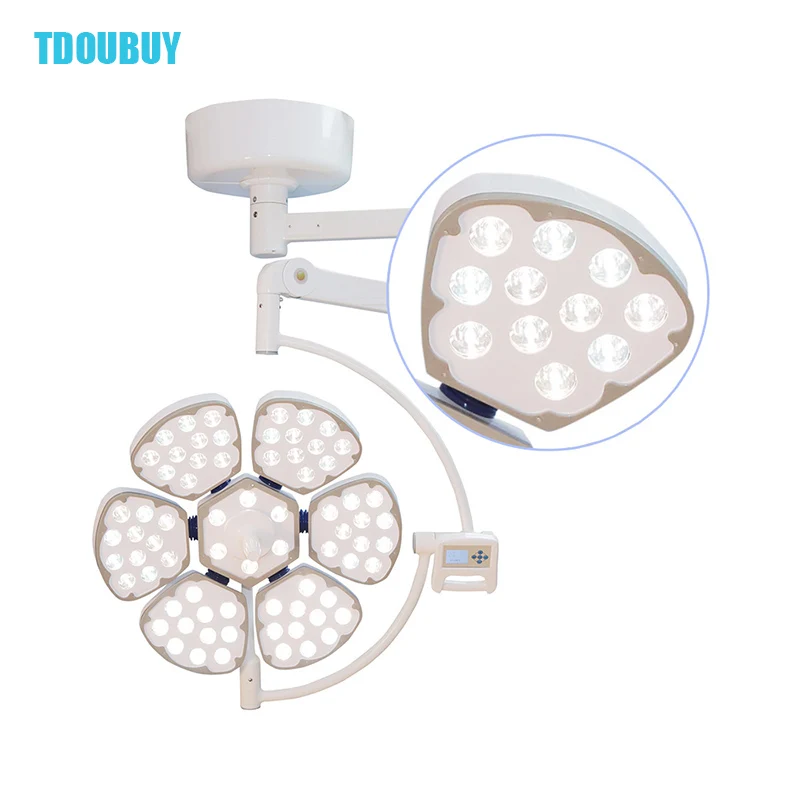

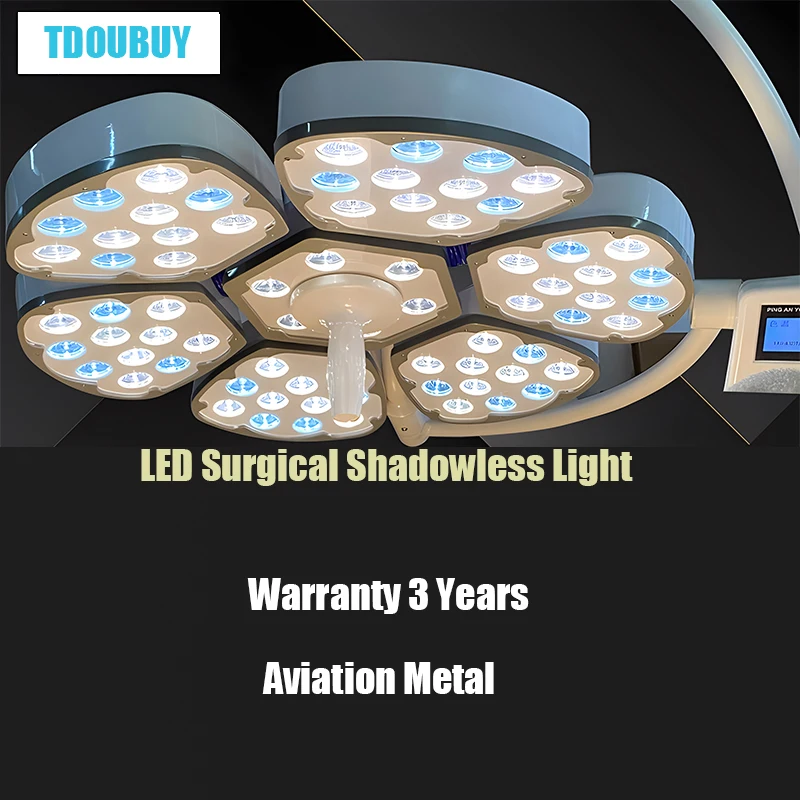

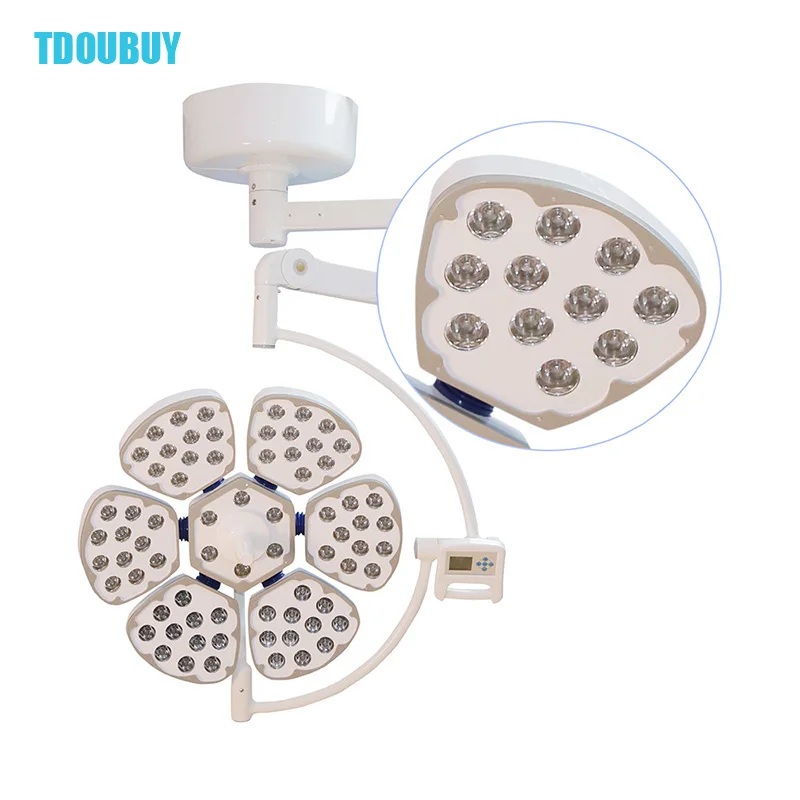

The shadowless lamp is used for lighting the operation area,
in order to observate the small and low contrast object which in incision and body in different depth.
Due to the head, hands and the instruments are likely to cause interference shadow to surgical site,
so operation shadowless lamp should be designed to eliminate the shadow, and can minimize the color distortion.
In addition, the shadowless lamp also need to continue to work a long period of time,
but not emit too much heat, because the overheating can cause patient uncomfortable, also can make the organization in surgical area dry.
The main features of examination light
1,Ideal cold light effects.
Using the new LED cold light source, ensure energy saving and environmental protection and long service life up to 80,000hours and more.
The temperature increase of surgeon’s head below
1℃. LED do not engender infrared ray and ultraviolet radiation, without the temperature
rise and tissue damage caused by halogen shadowless light, also it can accelerate the wound healing after surgery, and without Radiation pollution.
With color temperature constant and soft, LED is very close to the sunshine.
2,Excellent shadowless effect
Lamp with the most scientific radian and Multi point light source design, ensure better uniform illuminance. When the lamps are partially occluded,
also can achieve perfect shadowless effect.Lamp panel radius of gyration ≥182cm, the lamp can be pulled to vertical floor, convenient to any angle illumination.
3,Excellent deep lighting
It is based on modularize method by Computer Aided Design, focused to irradiating with more beams of LED. It produces the deep lighting which beams
more than 1200cm,the illumination of center up to 180,000Lux or more, and offer the color temperature that can be adjusted from 3700K to 5000K which
is close to sunshine. Absolutely, it really reflects the color of human tissue and satisfied by all kinds of operating light needs.
4,Advanced control system
The use of liquid crystal display button control, to meet the needs of the medical staff of different patients with the brightness of the operation.
It offers illuminance memory function.
It does not effect using when a single circuit or one bulb is broken.
5,Universal suspension system
Rotating arm, a new type of alloy material is made of eight edge type.
Balanced system using imported arm module, more than 5 group universal joints, every cantilever must has more than 3 joints which can be rotated in 360°,
The structure is light, easy to manipulate, accurate positioning, can provide the maximum range of regulation.The equipped with fatigue correcting unit and
fix position hand handle device, easy to fix position after long time use.
6,Modern laminar lamp
The thickest part of lamp-chimney is not more than 10cm.
The lamp-chimney is made of ABS, The handle on the central of lamp can be detachable, can take high temperature (≤ 134°C) sterilization treatment,
easily adjust, flexible fixed.
