Description

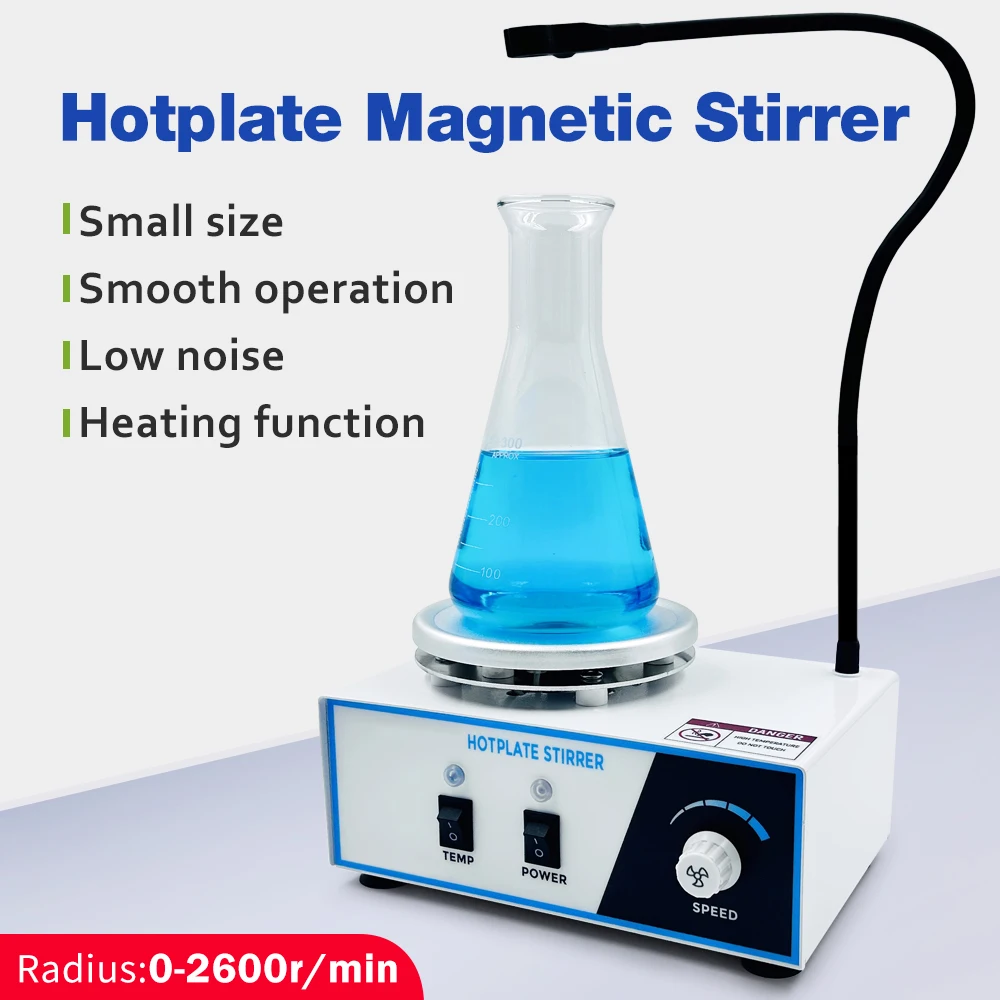

2L Hotplate Magnetic Stirrer Lab Heating Stirrer Thermostat Mixer 220V 0-2600rpm Medical Science Laboratory Equipment
Model: XLD-78-1
Voltage frequency: 240V50hz

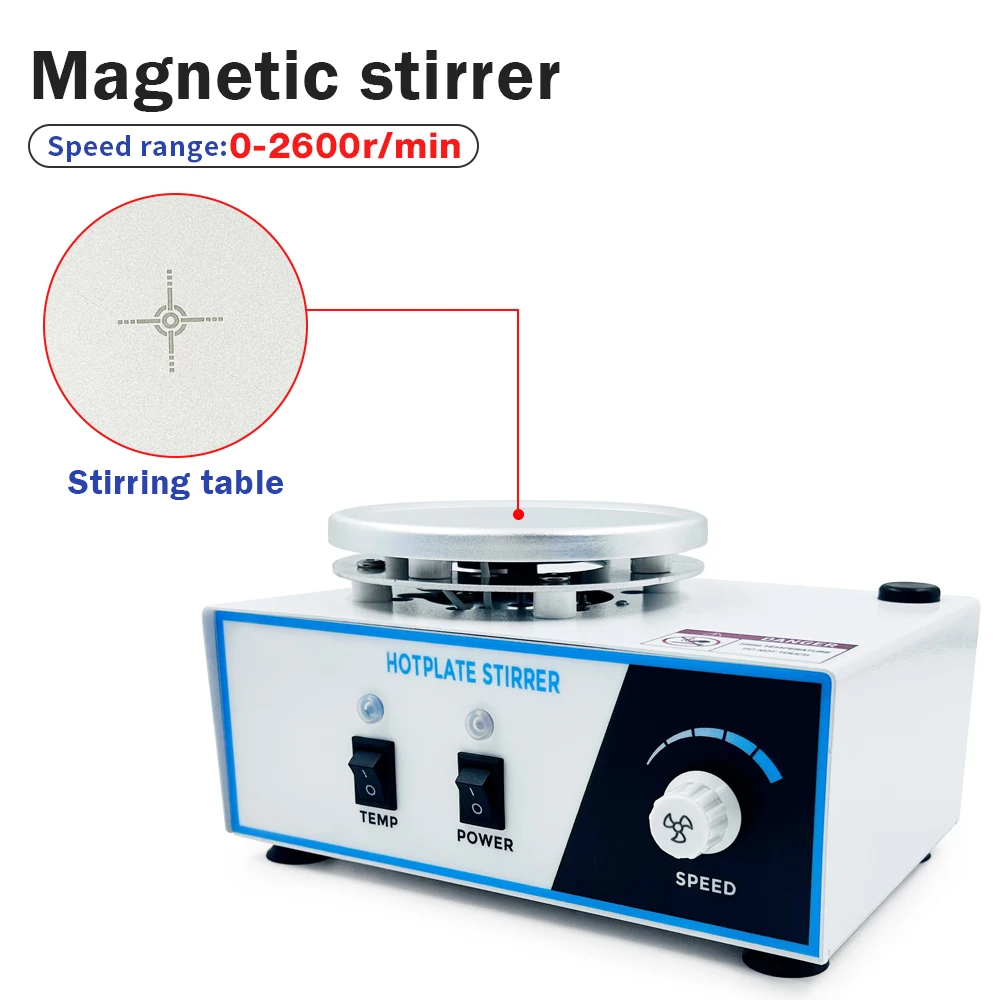

Speed range: 0-2600r/min
Operating mode: temperature + speed regulation
Motor Type: Brushless/Carbon Brush
Table size: 120mm*120mm
Thermal output power: 250W
Overheat protection: 300°C
Working capacity: 2000ml
Motor power: 5W

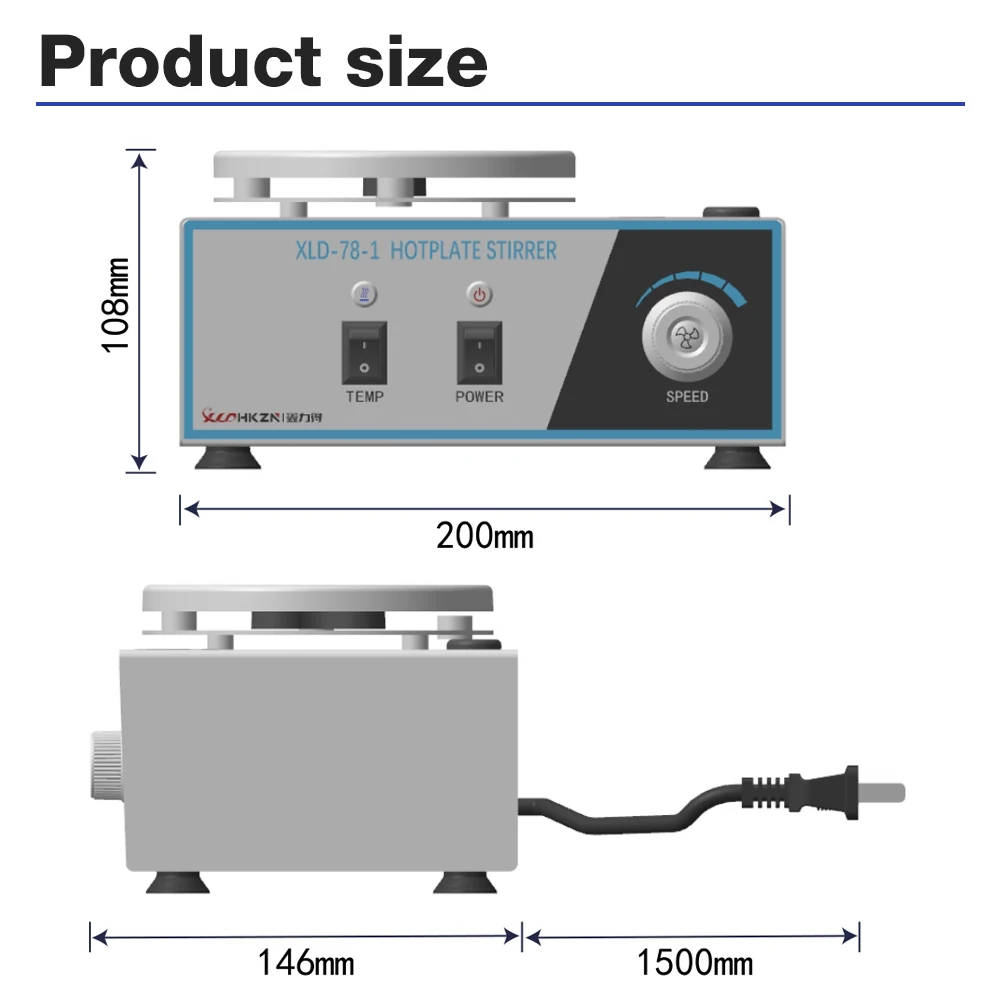

Machine size: 200*146*108mm
Packing size: 230*175*155mm
N.W./G.W.: 1.45kg/1.6kg
Work table material: 6061 aluminum + matte oxidation treatment

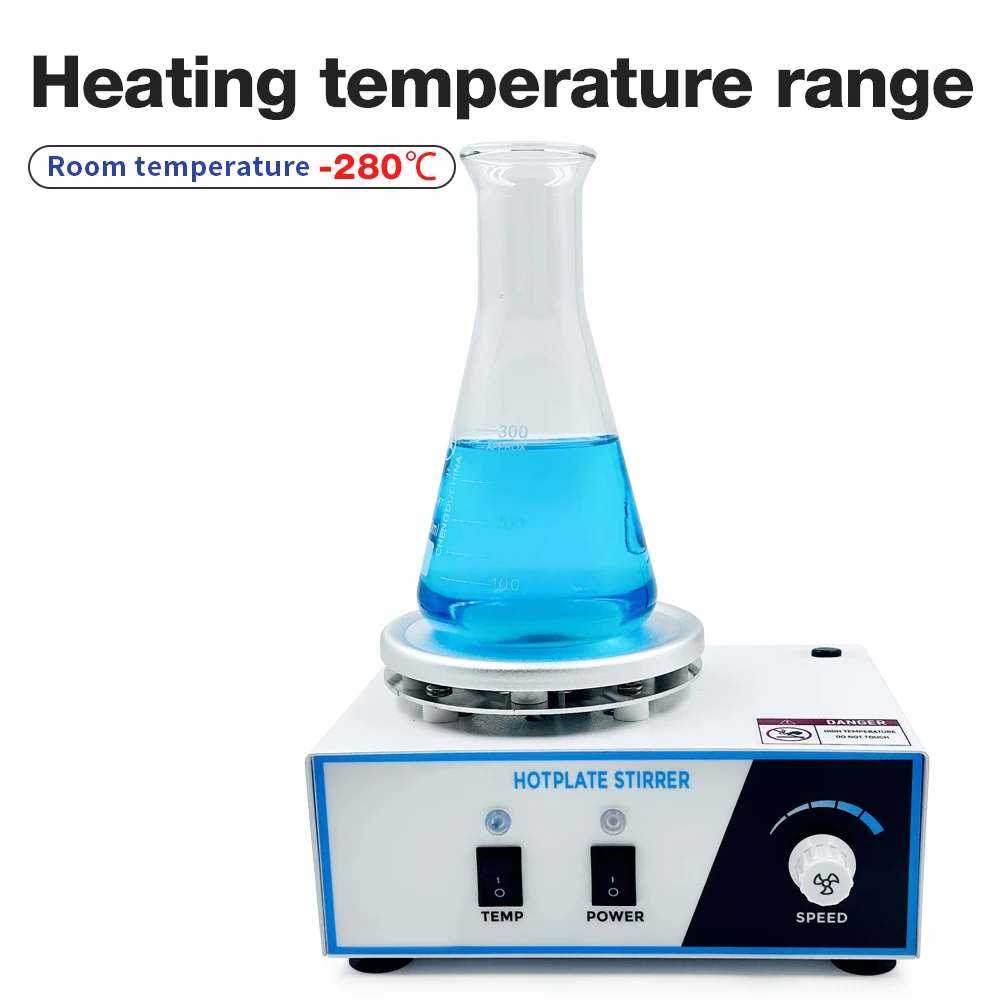

Heating temperature range: room temperature -280°C
Plug: EU

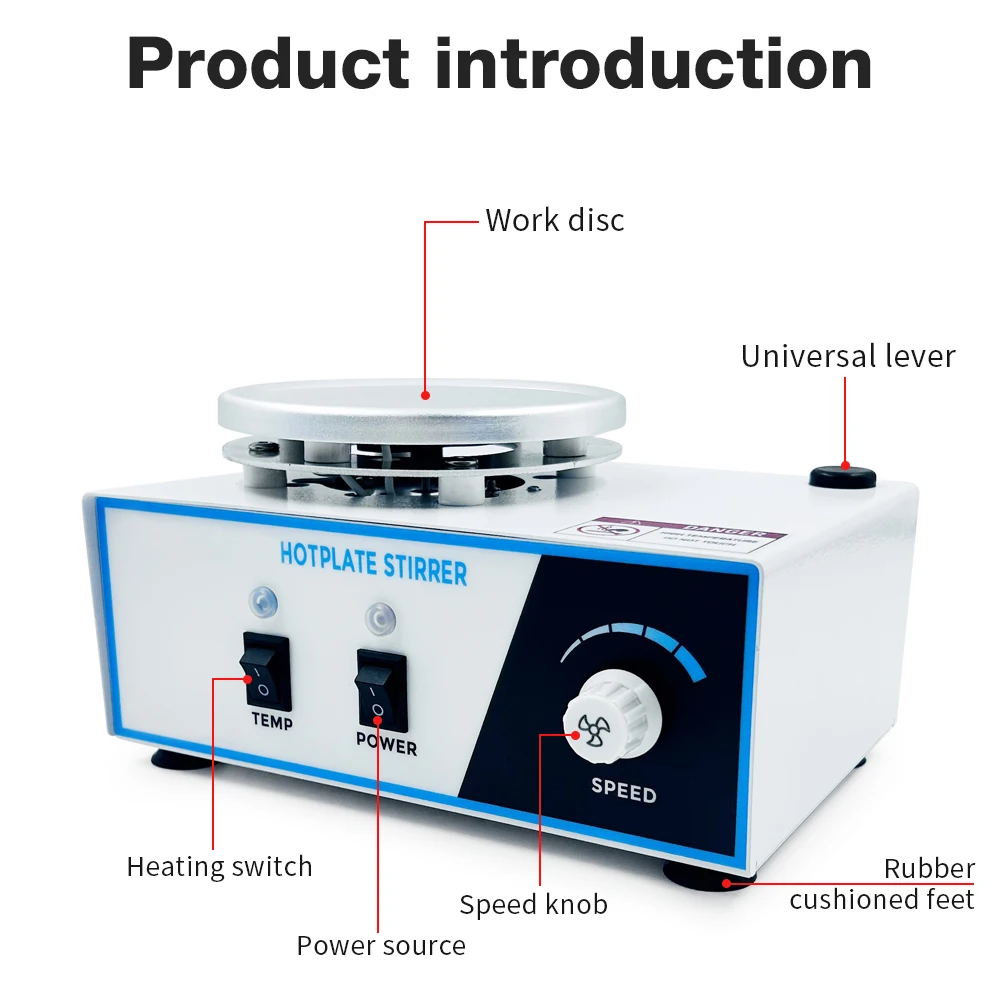

Procedure of use:
1. Place the machine on a flat workbench, and insert the power cable into the power socket with the same voltage as that marked on the machine.
2. Place the experimental beaker solution equipped with the ratio of the model steadily in the center coordinate position of the heating disc to confirm that it is placed smoothly and proceed to the next step.
3. Turn on the power switch and the signal is on.
4. Speed function: Rotate the speed control knob clockwise, and the motor will increase or reduce the speed with the change of the speed control knob.
5. Heating function: Turn on the heating switch, the signal light will turn on, and the heating disk will start to heat.
6. Turn off the heating switch, turn off the speed knob and turn off the power switch after the test meets the requirements.
7. When the machine is idle, unplug the power cord and cut off the power supply.
Note:
If you need other plugs, please contact us first. Thank you.
Please note that the package does not contain a test bottle.
